Italab

MD 1500P 144 , 1500W 144 MHz

MD 1K 144 BOX

AMPLIFIER BOX 1000 WATT 144 MHz COMPLETE RADIATOR, SHIELD,LOW-PASS FILTER and DIRECTIONAL COUPLER FOR THE MEASUREMENT OF DIRECT AND REFLECTED POWER (output dc voltage) POWER SUPPLY + 48 - 50Volt, 26 to 28 A.

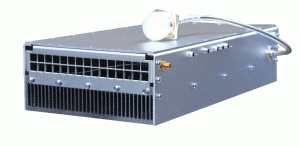

MD 1000 BX 144

BOX AMPLIFIER 1100 WATT 144 MHz. CLASS "AB", COMPLETE of RADIATOR, SHIELD, LOW-PASS FILTER and DIRECTIONAL COUPLER FOR THE MEASUREMENT OF DIRECT AND REFLECTED POWER ( dc output voltage) POWER SUPPLY: + 48 - 50Volt, 28 to 30 A. OVERSIZED PARTICULARLY FOR CONTINUOUS OPERATION (H24)

MD 500P 432

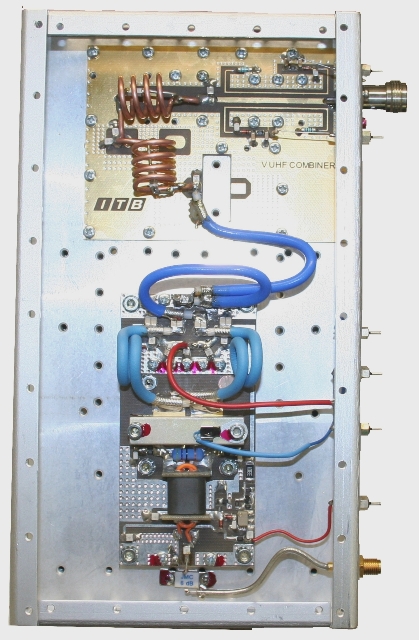

MD 2000 BOX 144

Box Amplifier complete with low-pass filter and directional coupler for forward and reflected power reading (with an appropriate circuit). Consisting of a pallet of 2500 W with 2 devices Freescale MRF6VP61K25HR (65:1 SWR), pc board and Teflon capacitors with high Q, low-pass filter of the 7 th order harmonic product guarantees a better than - 70 dBc, the linearity and professionalism of the mechanical design - electronic amplifier make this the best you can find on the market today.


Operating range : 140 – 150 MHz
Output Power : 2100 W
Input Power :15 W ±1 dB
Supply Voltage + 47 ÷ + 50 Vdc
Power Consumption @ 2000W out : 55 A ± 5% @ 50 vdc
RF efficiency : 78 %
Low pass filter : 7 th order
Harmonic Product : better than required by the CCIR - FCC
Inhibit : - 5Vdc
size mm 450 x 335 x 170 450 x 335 x 170

MD 500 BOX 432

Excellent professional execution, two 300W amplifiers coupled with hybrid - 3dB 90 degrees, very robust and good value "SWR-PWR" takes an SWR of 100 W without damage. Complete with low-pass filter and directional coupler, connect INHIBIT (- 5 volts), created for continuous use with adequate ventilation

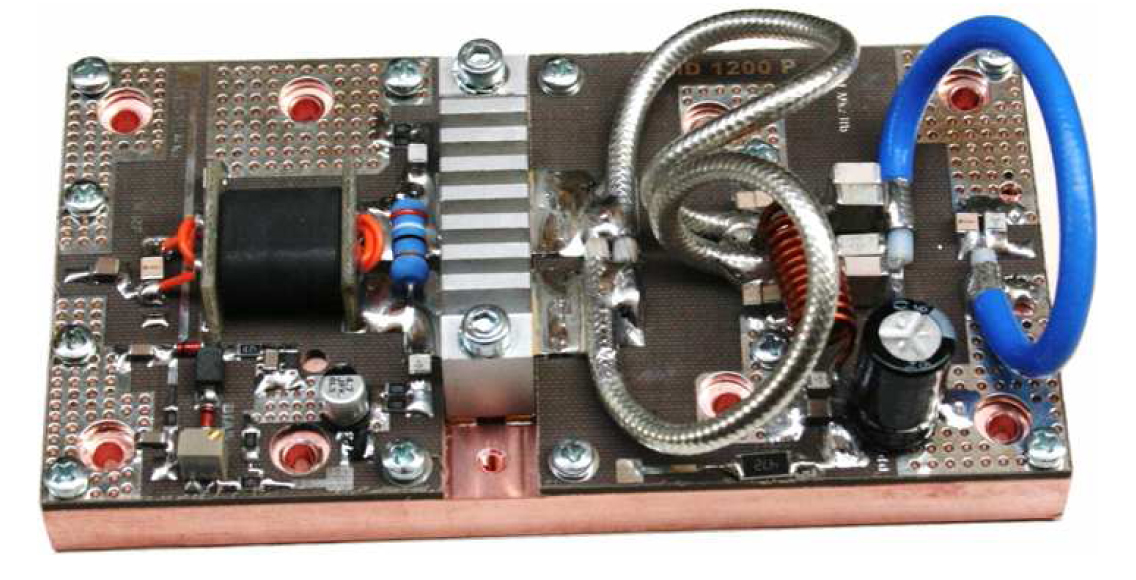

AMP 1200 AR 144

PALLET AMPLIFIER 1200 WATT 144 MHz, OUTSTANDING WARRANT EXECUTION OF 1200 WATT POWER OUTPUT CONTINUOUS (with proper and adequate ventilation radiator)

MD 1000 AR 50

PALLET AMPLIFIER 45 to 60 WATT MHz.1000 (70 MHz, 800 W), WARRANT OUTSTANDING PERFORMANCE 1000 WATT POWER OUTPUT IN CONTINUOUS (with proper radiator and adequate ventilation). POWER 48 to 50 Volt, I.A. 28 to 30 A, DRIVING 3 to 4 W

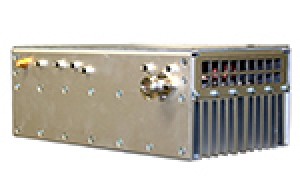

MD 1K 50 BOX - 1000 WATT 50 MHz

BOX 1 KW RF 50 MHz (70 MHz 800 W) WITH lowpass filter, RADIATOR AND HEAT SHIELD RF. ALL OUT OF SIGNALS ARE FILTERED THROUGH PROPER FILTERS EME,
DRIVING 12-15 W OUTPUT POWER 1000 Watt, 50 Volt NEGATIVE POWER GROUND OUT CURRENT TYPICAL @ 1 KW = 27 to 28 A. A HARMONIC PRODUCT STANDARDS CCIR - FCC

MD 150P 1296

220 W 1296 MHz RF PALLET Driving 8-9 Watt, 48 Volt 10 A Power

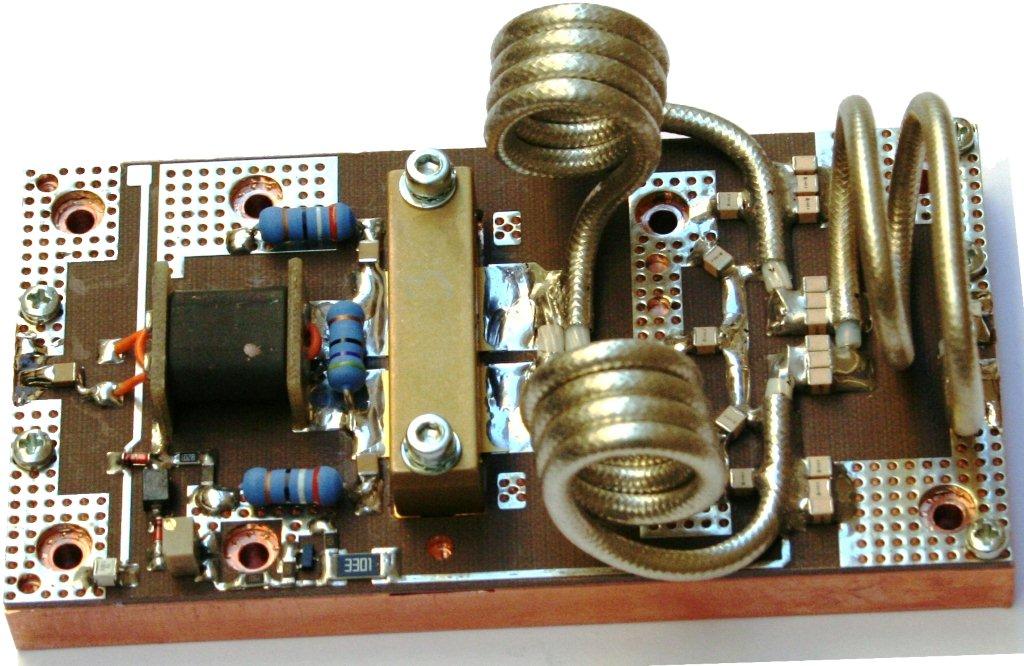

AMD 1000 AR 144

Pallet Amplifier 1KW 144 MHz, equipped with new member of Freescale MRF6VP61K25HR 1250 W 65:1 SWR. Robust and almost indestructible is the perfect complement THE AMATEUR he wants to build a SSPA. It does require a power supply, (48 Volt) A low-pass filter (LPF 1000) AND THE GAME AND 'MADE, The unit works .... 1000 W Out with 3-4 W driving
Be sure to properly use a heat radiator of sufficient size.

MD 220 L

220 W 1296 MHz RF PALLET Driving 4 - 5 Watt, 48 Volt 10 A Power
